Honda GX200 in the Original Twist 3-wheeler

A 200cc engine in a car! Surely we jest?

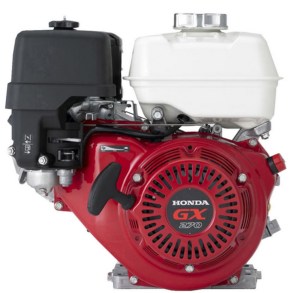

Honda GX270 - even smaller without the tank

Honda GX270 – even smaller without the tank


Well first let’s see what the engine is required to do. Remember the car is a light, range extended plug-in electric car with everything minimalised to save weight. Even the electric range is cut back to 20 miles to halve the usual battery pack; half the weight and half the cost. In normal use the car would do the school run or a shopping trip on battery power alone but with no range anxiety thanks to petrol back up. Most electric cars boast longer range but for the majority of journeys they have carried around a heavy stack of surplus batteries. It follows that for most of our short journeys we are also lugging round the petrol engine so weight is going to be a major consideration.
The main use for the petrol engine might come from a weekend run in the country with some fast roads thrown in. With the 20-40bhp electric motor for brisk acceleration and overtaking the 9bhp petrol motor is really just for cruising at up to 50mph. Bear in mind that the engine is charging the batteries when the car is stationary, at the lights say, so the available, combined power when on the move is higher than one might imagine.
The Honda GX engine range actually gives us the choice to go for a bit more power but with weight penalties. Thanks to the go-kart scene they can all be tuned for more revs and more power. The rev limiter is always removed and a stronger flywheel added.
The GX200 only weighs 35lbs and can produce a useful 9bhp. The Loncin Chinese clone version only costs around £250 and makes a good starting point.
Next up is the GX270. Weighing in at 55lbs this might turn out to be the sweet spot between power and weight. With the usual modifications and the bigger carburettor from the GX390 this engine will give a good 12bhp.
The GX390 is good for up to 20 bhp but weighs a back straining 69lbs. Only testing will tell if that is departing too much from the light and minimalist idea but it would certainly be good for breaking the speed limit on the motorway. One should bear in mind that the engine and the electric motor are mounted just ahead of the rear wheel and the aim is to keep the overall weight distribution just slightly front heavy.
The engine mounting plate on the Original Twist hybrid 3-wheeler will be pre-drilled to mount all 3 engines so the choice is there. We can also consider the Briggs and Stratton racing engine with all the right bits built in at the factory – it’s called the ‘Animal’.
No doubt some inveterate tinkerers will have a spare engine for tuning experiments and, who knows, in time there might even be a racing series.
It is the intention that the engine will be pretty much clipped on and able to be changed in a couple of minutes so concepts like service exchange engines, rented engines etc are feasible. With that in mind the little 35lb GX200 that fits in a shopping bag looks attractive.

Advertisements

Hybrid 3-wheeler – structural panels

Eco-car structural bulkheads.

light and strong

light and strong

tube wrap

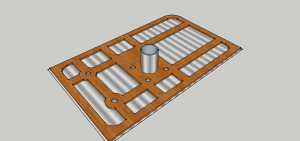

The concept sketch shows how aircraft grade birch plywood stuck onto an aluminium sheet has been CNC machined away to leave struts for load distribution and pockets for plug inserts. The real thing would be much more scientific with loads properly distributed by the remaining integral struts. A mirror image version will then be glued on top –wood to wood- and the outside aluminium edges peened over to leave a solid looking panel (but largely hollow inside) which will not only look good with complex curves but be very strong and light. Any big holes in the panel will have the edges peened over too. Peening can be largely automated with a CNC guided rotating roller head.
Heavy loads from components bolted to the panel are fed in via plugs inserted into machined pockets so that any through bolts can’t crush the wood structure when tightened. The plugs are fitted in pairs with a larger star washer in between so that the sharp edges crush into the plywood to give even more load transmission.
Being CNC machined, identical complex panels can be produced quickly and with minimal labour cost. It pays dividends to design complexity out of the car and into the panels. Padded leather panels, a headrest for example, can easily be bolted up to the bulkhead as can other trim items.

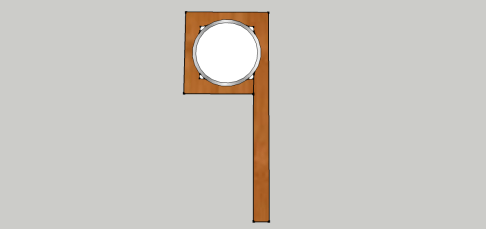

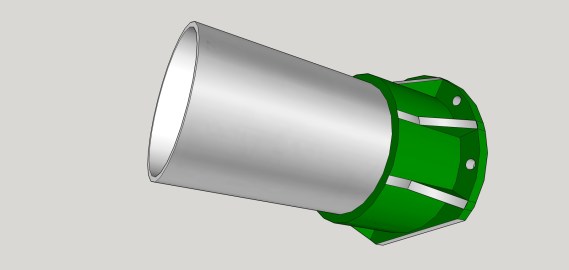

Front and rear bulkheads in our car will be connected by 3 of the tubes shown. They will be joined to the bulkhead by cast ally brackets (not shown) where the tube end is expanded and glued by a tapered collar being pressed into each end. The picture here shows how a side panel wraps the tube to make an immensely strong beam affording maximum side impact protection and, of course, a nice wide arm rest as well. The folding is achieved by machining ‘V’ grooves through the plywood leaving the aluminium skin to be a bent hinge line. A more complex shape to the groove can make rounder corners too.
.
The inspiration for much of this comes from two great car designers. Colin Chapman made racing car bulkheads from opposed metal sheets with peened holes and edges for rigidity. Alec Issigonis with his Morris Minor design used a complex bulkhead to mount; suspension, shock absorbers, steering rack, battery box, pedals and more. We shall do the same.
No doubt the car will be strong, stiff and light but there is more to an eco-car than that; it must come at an affordable price and these techniques get us there all in one hit. In fact the car is so simple that anyone with a modest workshop and access to a CNC router could make one. Maybe a good base for a schools project?
Ultra strong and light complex panels like these will have many other uses. Paired frames for a motorcycle and a gyrocopter immediately spring to mind. In higher volume applications the plywood core can be precut with a waterjet cutter and then glued between the precut aluminium sheets.
